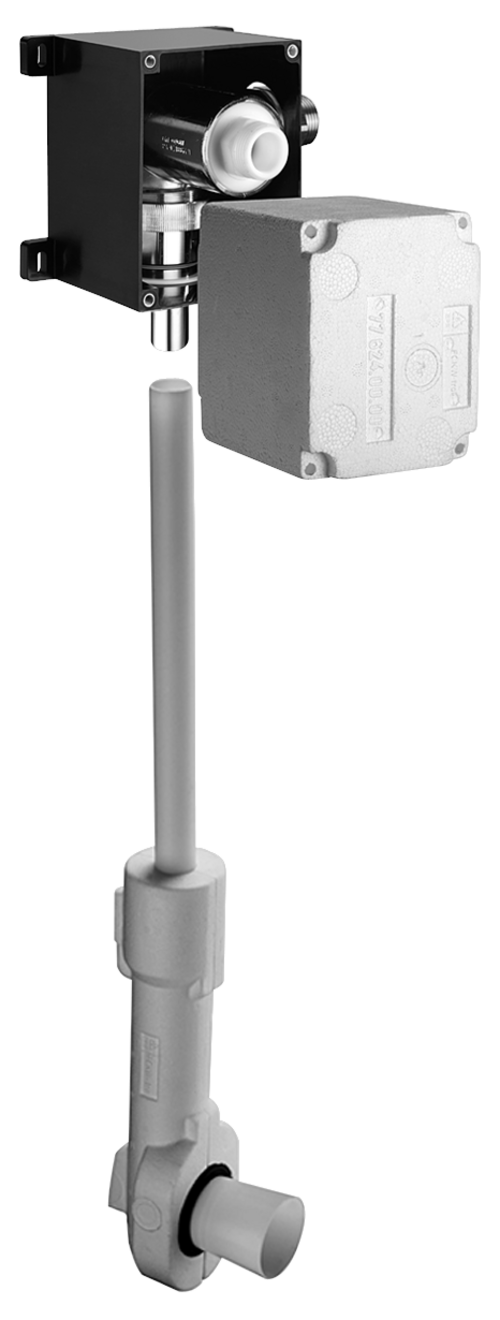

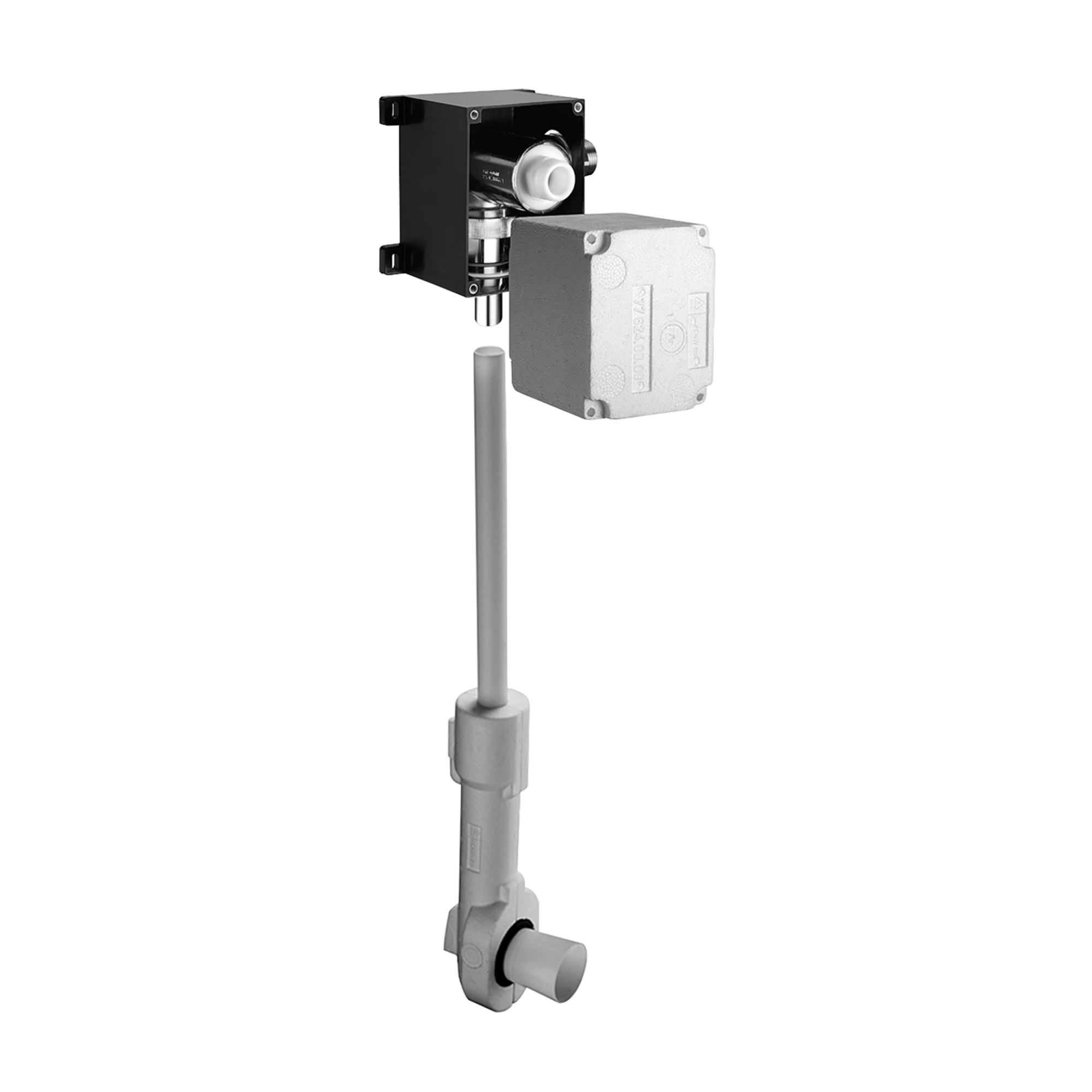

Concealed WC flush valves COMPACT II

Concealed WC flush valves COMPACT II

Low-noise concealed flush valve. For combination with all SCHELL WC controls/operating panels. Conform to DIN EN 12541. Internal isolating valve.

  • Flow pressure: 1.2 – 5.0 bar
  • Max. Resting pressure: 8 bar
  • Flush flow: 1.0 – 1.3 l/s
  • Material: Housing Plastic; Waterpath Dezincification-resistant brass, conform to German drinking water regulations
  • Connection: DN 20 G 3/4 AG (right)
  • Outlet: Flush pipe Ø 45 mm
  • Certificates: PA-IX 18844/I, DIN-DVGW applied, Belgaqua
  • Noise class: I, at 100% flow

Technical Data Sheet

Product Details
