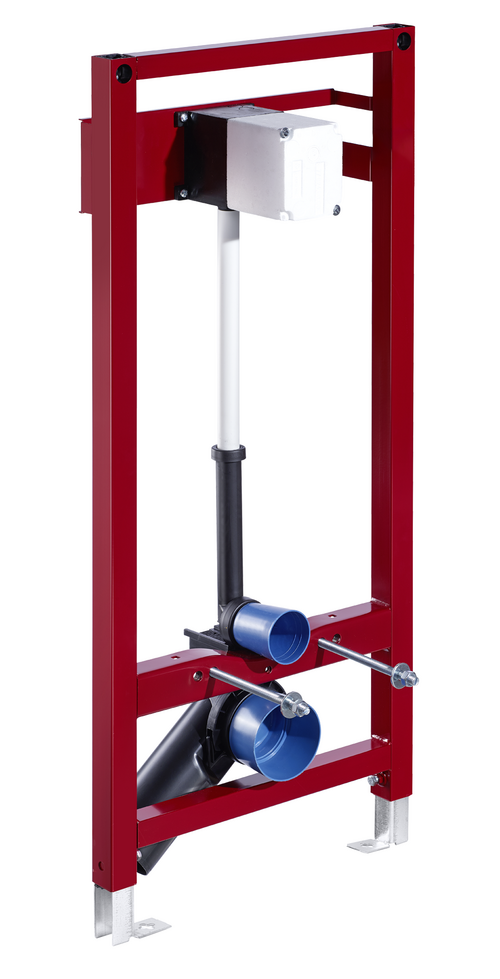

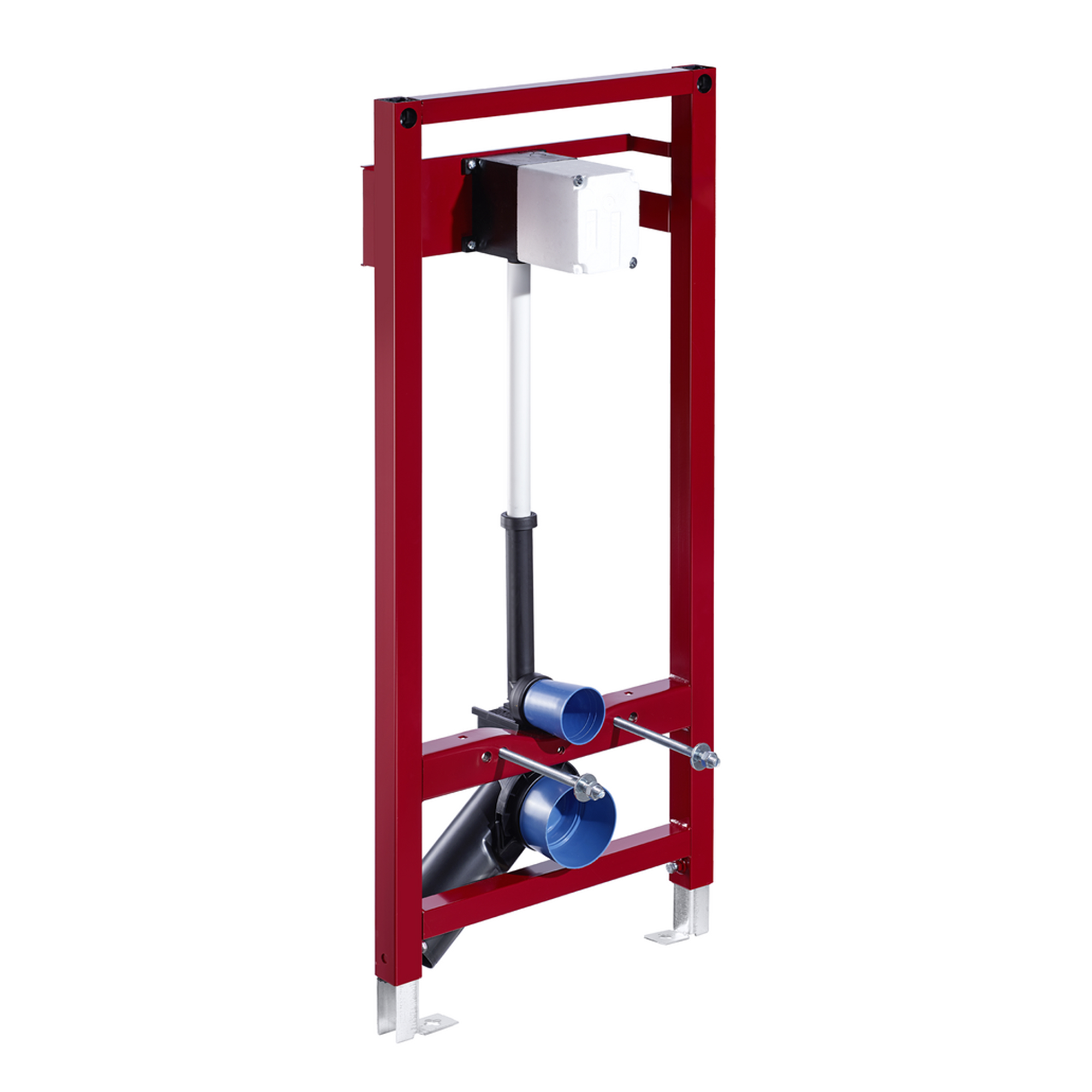

Type COMPACT II

WC module, height 115 cm with concealed COMPACT II flush valve. For stud wall or pre-wall mounting or exposed installation. For wall-mounted WC with 180 or 230 mm fastening dimension. Self-supporting, powder-coated steel profiled frame with height-adjustable feet and cross bars. Flush triggering electronic or mechanical.

• WC module
• Pipe interrupter (DIN EN 12541)
• Cross bar with concealed COMPACT II flush valve, with isolating valve and flush-mounted cap, height-adjustable
• Height-adjustable flush pipe Ø 45 mm, with construction plug
• Galvanised, height-adjustable mounting feet 0 – 20 cm with slip resistance
• Reducer Ø 90 / 110 mm
• WC connection set (supply Ø 45 mm, drain Ø 90/110 mm)
• PP drain elbow Ø 90/90 mm, with construction plug
• Fastening material for WC installation (fastening bolts M 12 x 200 mm, protection hoses, plastic collar bushings, nuts, flat washers, cover caps)
• Fastening material for installation feet
• Weight: 12,30 kg/Piece
• Packing unit: 1
