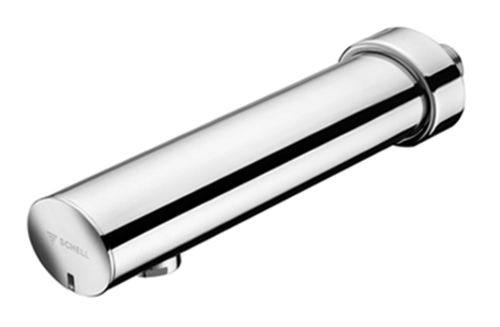

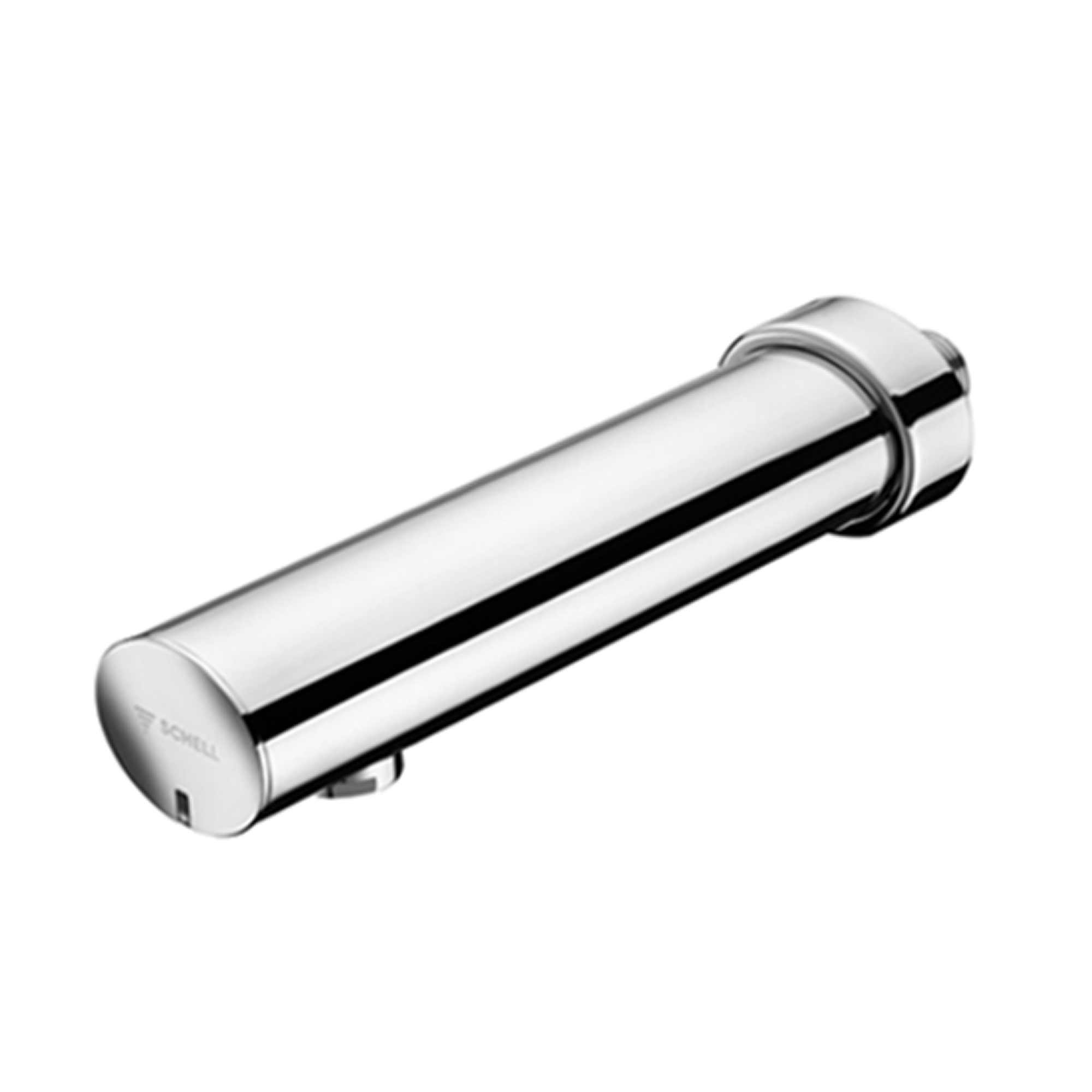

Exposed wash basin tap MODUS E

Exposed wash basin tap MODUS E

  • Setting options via short range reflex
  • Sensor range area (approx. 2-13 cm)
  • Stagnation flush (off/duration of flow 30 s, 24 h after last use)
  • Cleaning stop (off/120 s)
  • Flow: max. 1 gpm ≈ 3,8 l/min
  • Flow pressure: 0.5 – 5.0 bar
  • Max. Resting pressure: 8 bar
  • Max. operating temperature: 70 °C (for thermal disinfection 80 °C max. 10 min./day)
  • Material: Housing Brass, conform to German drinking water regulations
  • Surface: Chrome
  • Projection to centre of aerator: 187 mm
  • Connection: G 1/2 AG
  • Certificates: P-IX 29862/IO, WRAS
  • Noise class: I
  • Flow class: O
Technical Data Sheet
